Product Type

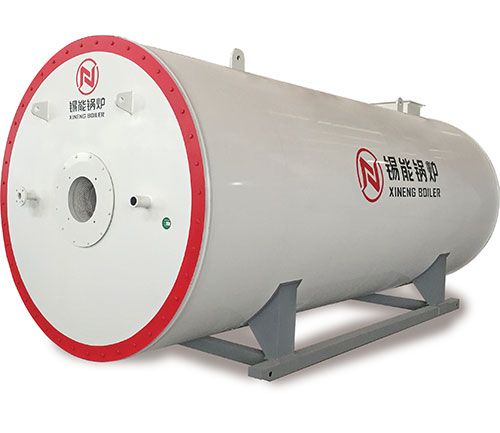

YYL(W) type vertical(horizontal) type fuel oil(gas) heat boiler

Product Range

Rated thermal power: 0.7MW - 29MW (60xl04Cal/hr - 2500xl04Cal/hr)
Design pressure: 0.6MPa - 1.6MPa
Specific parameters are shown in Table6

Structural features of this series of products

• There are two types of structure: vertical(YYL) and horizontal(YYW).
• The boiler surface adopts the tightening-tube-arrangement with spiral structure. The chimney adopts the three-pass arrangement.
• An air preheater or a water/steam transformer is arranged behind the boiler, reducing the temperature, improving the thermal efficiency of the boiler.
• The quick opening door or the observation door is equipped for the convenience of checking the internal inspection and maintenance.

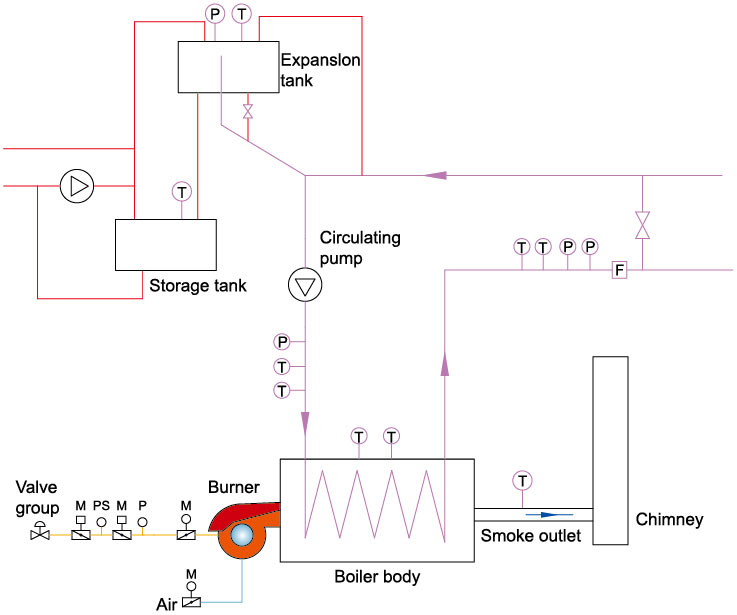

Oil/Gas Thermal Boiler System Diagram

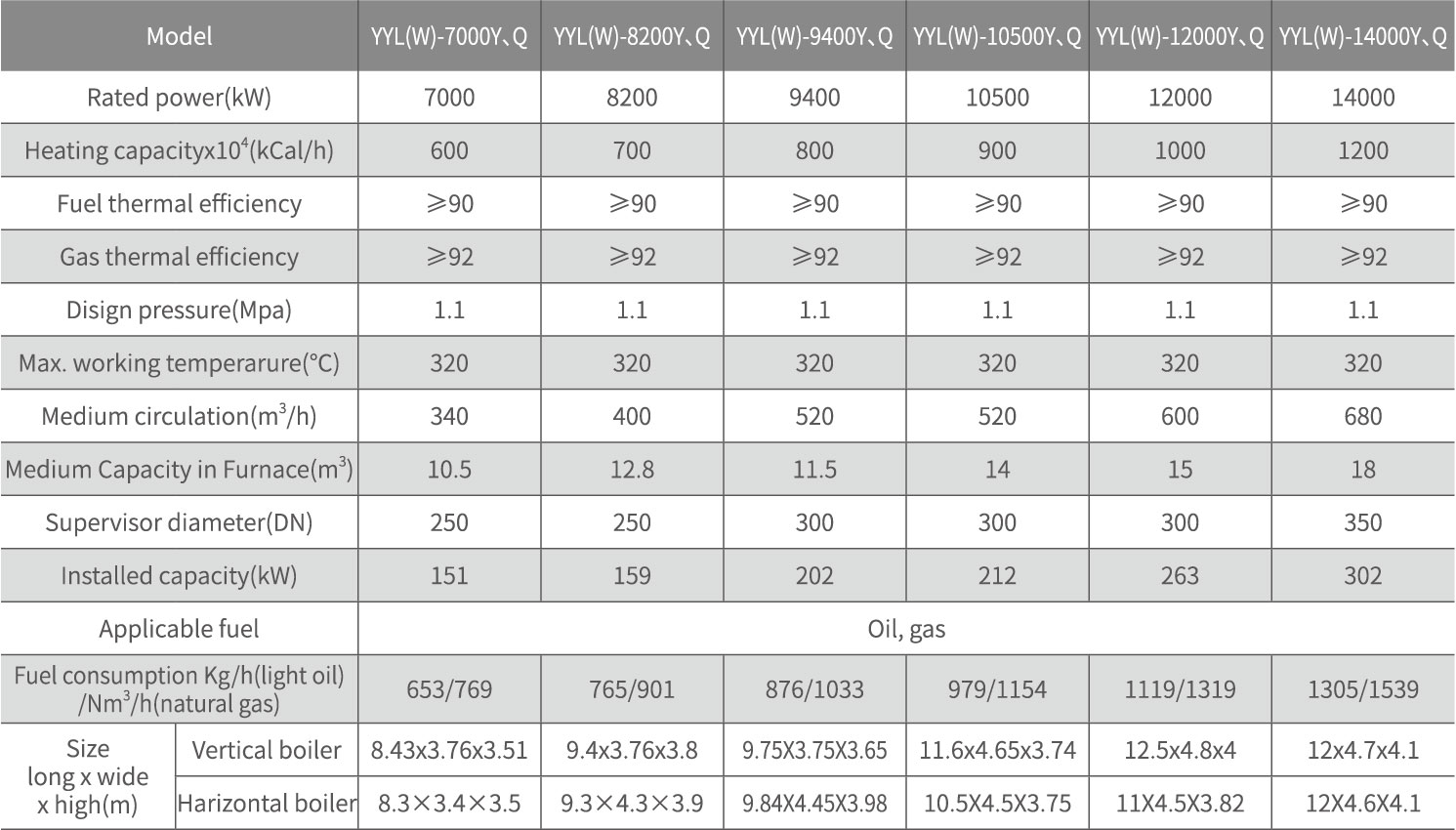

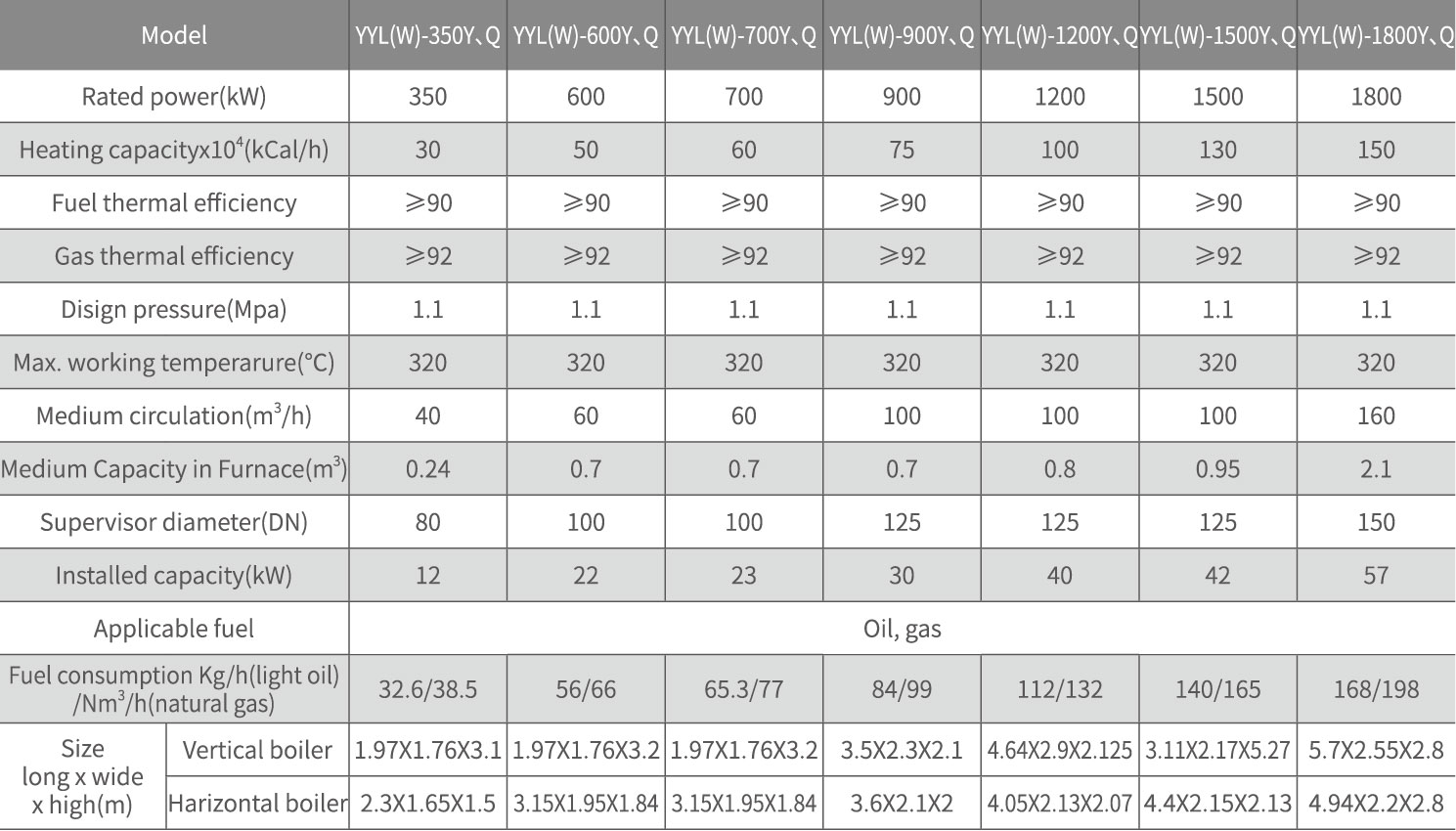

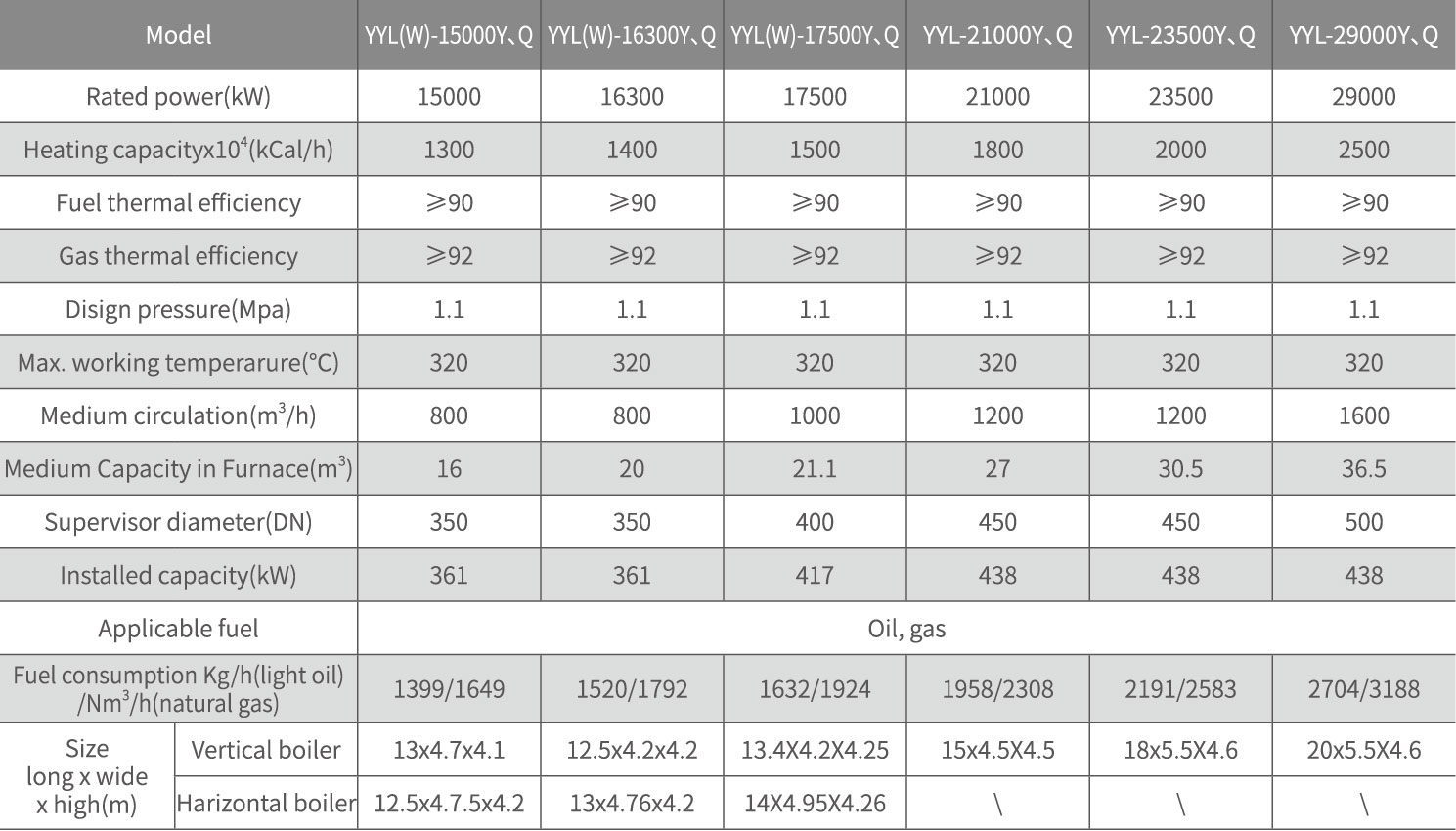

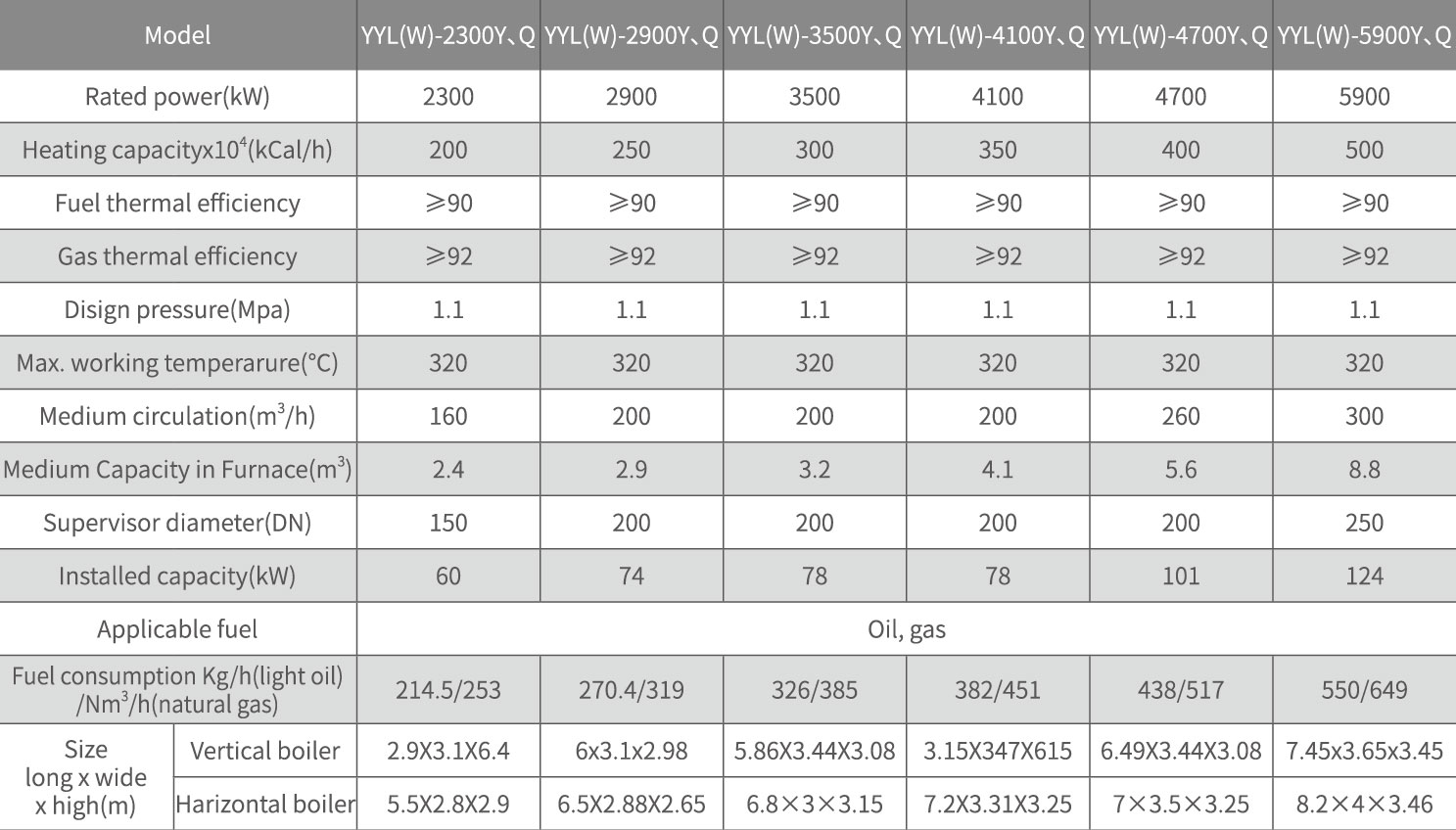

Parameters Table 6
